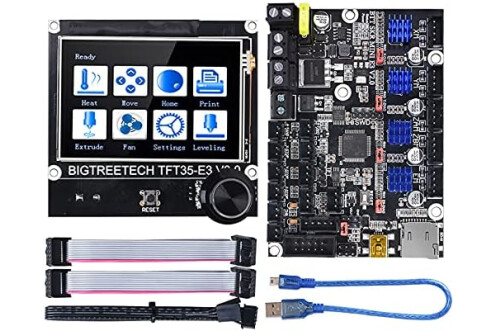

BIGTREETECH SKR Mini E3 V2.0 Control Board 32Bit New Upgrade for Creality Ender 3, with TFT35 E3 V3.0 Graphic Smart Display Controller Board 3D Printer Parts

• TFT35 E3 V3.0.1: ARM Cortex-M3 series STM32F207VCT6 chip with 32-bit CPU 120MHz; Upgrade the firmware by SD card. It is easy and convenient to operate

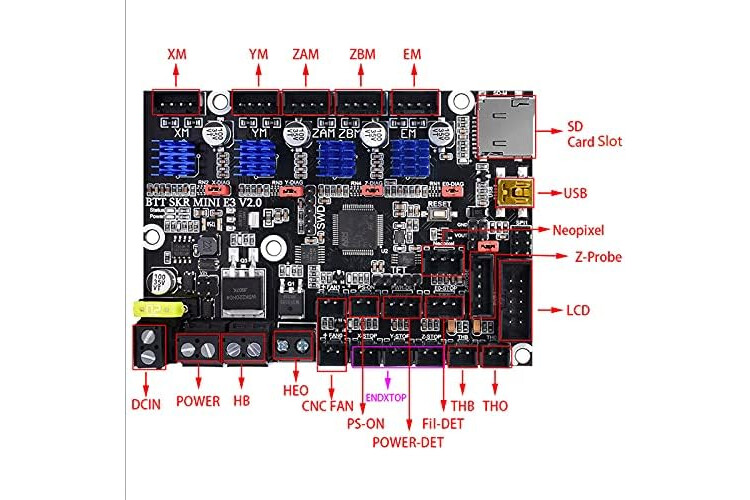

• SKR Mini E3 V2.0: ARM Cortex-M3 Series STM32F103RCT6 Master Controller with 32-bit Main Frequency of 72MHz Chip;Integrate UART mode of TMC2209 to simplify debugging of motherboard and driver.Reserve expansion ports for TMC2209 pins to facilitate users to use DIAG instead of Endstop

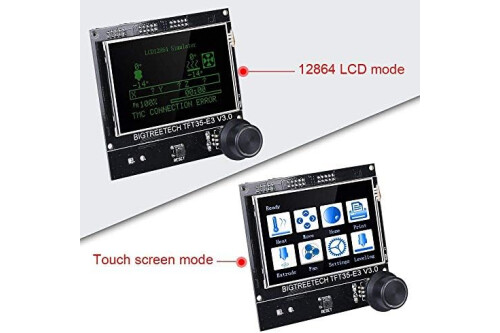

• TFT35 E3 V3.0.1: This display board has higher compatibility. Users can select two work modes:UART serial port screen mode and 12864 screen mode;Serial port screen mode supports two printing modes: SD card and U disk

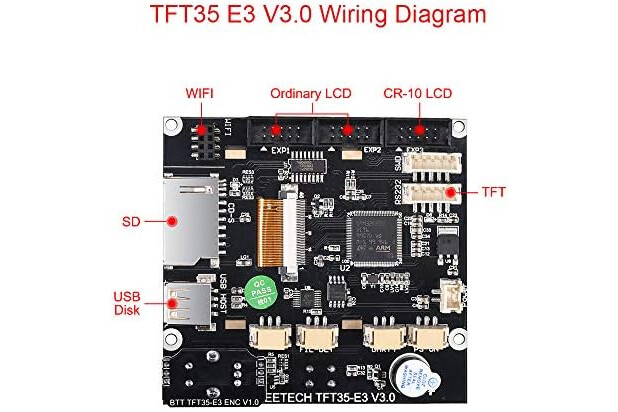

• TFT35 E3 V3.0.1: LCD12864 mode uses EXP1, EXP2 and EXP3. EXP1 and EXP2 are LCD screen ports of normal motherboard. EXP3 is the LCD interface used by E3 series motherboard (such as SKR MINI E3 V1.2, SKR E3 DIP V1.1, etc.)
• If you encounter any problems, please write us via Amazon as soon as possible. We have professional technical after-sales personnel to solv...
