Color: Sand beige
Rated Input Voltage: 100V
Rated Input Current: 24.4A
Rated Input Capacity: 2.44 kVA
Rated Frequency: 50/60 Hz
Rated Output Current: 80A
No-load voltage: 19.5V
Output Current Range: DC30A - DC80A
Rated Usage Rate: 35%
Weldable Plate Thickness (Mild Steel): 0.03 - 0.1 inches (0.8 - 3.2 mm) (when using 100V 15A)
Weldable Plate Thickness (Stainless Steel): 0.03 - 0.06 inches (0.8 - 1.5 mm) (when using 100V 15A)
Applicable wire: φ0.03 inch (φ0.8 mm)
The φ 0.04 inches (φ 0.9 mm) diameter wire (PF-02) has a maximum output A number of 80A, so it cannot carry the maximum wire ampacity
| Brand | スター電器製造(SUZUKID) |
|---|---|
| Model Number | SBD-80SB |
| Product Dimensions | 32 x 16 x 28 cm; 6.3 kg |
| Color | sand beige |
| Wallpaper Pattern | Single Item |
| Power Source | Electrical |

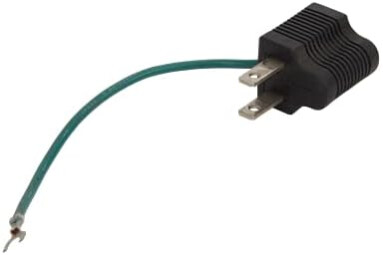

| Included Components | User Manual, Consumable Storage Case, Warranty Card, Carrying Belt, 2P/100V adapter |
| Model Year | 2021 |
| Warranty Description | 1 Year |
| Item Weight | 6.3 Kilograms |
