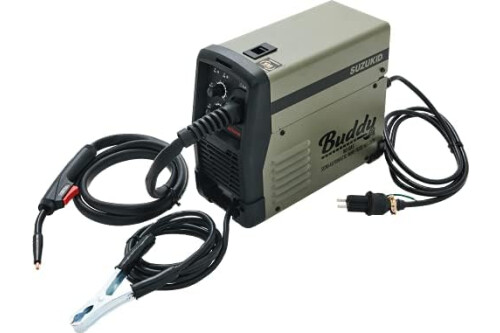

Star Electric Manufacturing (SUZUKID) [Online Store Limited Model] Inverter, Non-Gas Semi-Automatic Welding Machine Buddy80 SBD-80MG, Moss Green
Color: Moss Green
Rated Input Voltage: 100V
Rated Input Current: 24.4A
Rated Input Capacity: 2.44 kVA
Rated Frequency: 50/60 Hz
Rated Output Current: 80A
No-load voltage: 19.5V
Output Current Range: DC30A - DC80A
Rated Usage Rate: 35%
Weldable Plate Thickness (Mild Steel): 0.03 - 0.1 inches (0.8 - 3.2 mm) (when using 100V 15A)
Weldable Plate Thickness (Stainless Steel): 0.03 - 0.06 inches (0.8 - 1.5 mm) (when using 100V 15A)
Applicable wire: φ0.03 inch (φ0.8 mm)
The φ 0.04 inches (φ 0.9 mm) diameter wire (PF-02) has a maximum output A number of 80A, so it cannot carry the maximum wire ampacity

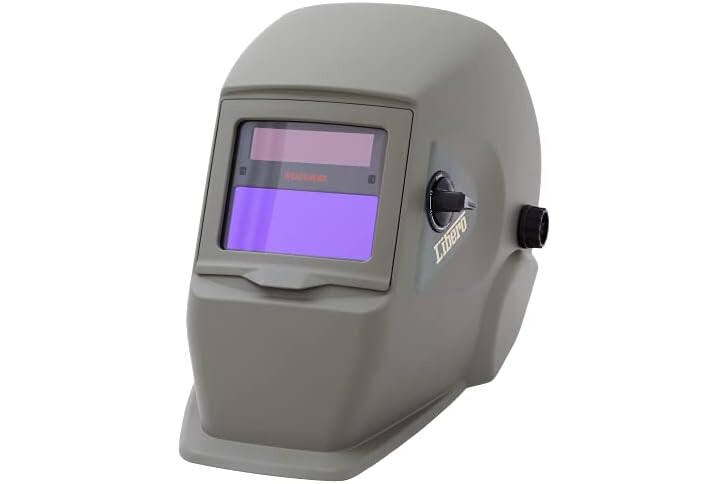

Star Electronics Manufacturing (SUZUKID) [Online Store Limited Model] LCD Auto-darkening Surface Libero LR-200MG, Moss Green
Face Color: Moss Green
Shade Color: Blue
Applications: TIG/MIG/MAG/MMA/cutting/polishing
Mode: WELD / GRIND
Field of view: W 3.8 x H 1.6 inches (96 x 40 mm)
Light shielding speed: 1/25,000 second
Light shielding degree: Before light filtering #3.5 / when light filtering #7 - #13
Sensitivity adjustment: Dial adjustment (stepless)
Return speed adjustment: 0.1 - 1.0 seconds (stepless)
Light shielding operation: Automatic ON / OFF
Sensor: 2 locations
Power supply: Solar battery + AAA (tan 4) battery (1 piece)
Brand | スター電器製造(SUZUKID) |
---|---|
Color | green (moss green) |

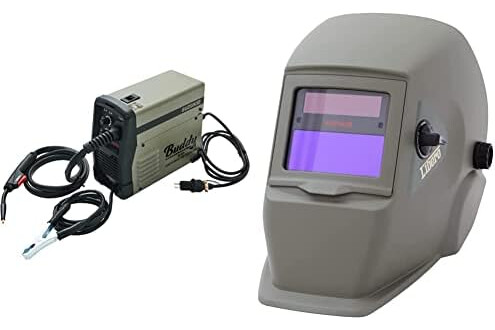

Wallpaper Pattern | Semi-automatic welding machine + automatic blackout surface LR-200MG |
