[Use]
Measuring length, checking right angle and cutting injuries.
[Features]
Thick, wide width type that is resistant to impact and does not lose angles.
The silver finish reduces surface reflections and makes it easy to read.
Specifications:
■ Accuracy: Right angle: 0.004 inch (0.1 mm) or less per 3.9 inch (100 mm) Length tolerance: ±0.008 inch (0.2 mm) or less
■Table Scale ●Long Branch: Outside Scale 50cm ●Short Branch: Outside Scale 25cm
■Back scale ●Long branch: Outside scale 50cm ●Short branch: Outside scale 25cm
■Display ●JIS mark●Red numbers included

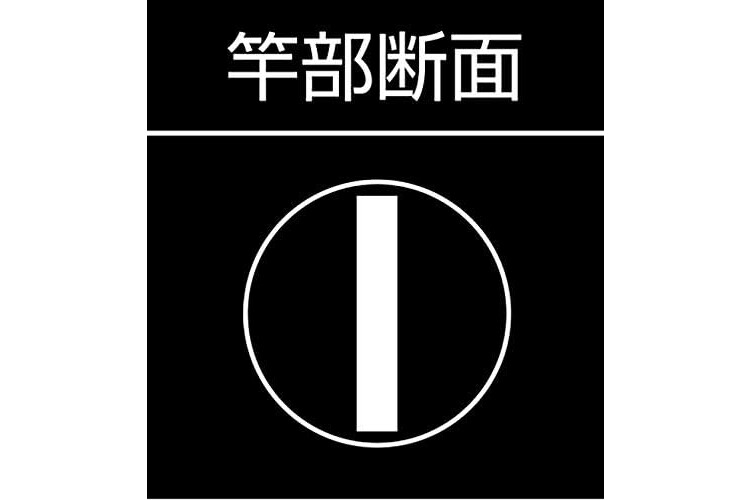

■ Shape: Same thickness
Material:
■Stainless steel
Size:
Long Branch 20.5 inches (520 mm) x Short Branches 10.2 inches (260 mm) x Width 0.8 inches (2
Weight: 8.5 oz (240 g).
*Do not use in places that may come into contact with electricity.
Brand | シンワ測定(Shinwa Sokutei) |
---|---|
Model Number | 11487 |
Package Dimensions | 54.5 x 29.5 x 0.6 cm; 249.48 g |
Color | gray |
Name List for Name Plates | 19.7 inches (50 cm), Same Scale on Front and Back, 4 Tier Scale |
Included Components | No |
Item Weight | 249 g |
