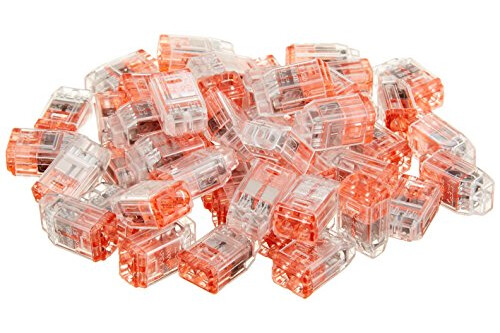

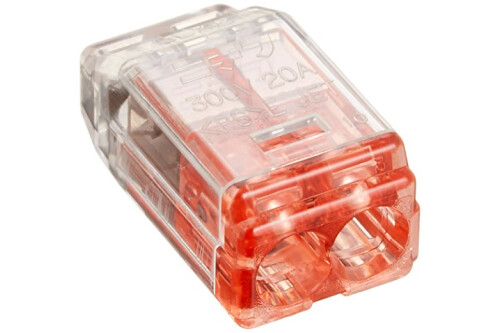

NICHIFU QLX2-L Quick Lock Plug-in Connectors, 20/50 Pieces, Red, Blue, Yellow, Purple

  • Poles: 2
  • Color: Transparent Red
  • Applicable wire (copper wire) single wire: 0.06 - 0.08 inch (1.6 - 2.0 mm)
  • Wire Holding Range Single Wire: ⌀ 0.06 - 0.08 inches (1.6 - 2.0 mm)
  • Number of Inserts: 2
  • nan: 6.8*8.5*6.8centimeters
Category: Others

Share:

Features:
Unique two-point contact spring construction.
Transparent cover allows you to see the wiring clearly
This product is compatible with JIS C2814 (plug type wire connector for indoor wiring). (Certified Inspection Agency: PS) E JET; Uses:
For unwield wires. Specifications:
Poles: 2
Color: Transparent Red
Applicable wire (copper wire) single wire: 0.06 - 0.08 inch (1.6 - 2.0 mm)
Wire Holding Range Single Wire: ⌀ 0.06 - 0.08 inches (1.6 - 2.0 mm)
Number of Inserts: 2
Rated Current: 20A
Wire carrying range stranded wire ([[MM2]): Not compatible with stranded wire
Length: 0.8 inches (20.5 mm)
Compatible wire (stranded wire) (m[[M2]): Not compatible with stranded wire
Compatible wire (single wire): ⌀ 0.06 - 0.08 inch (1.6 - 2.0 mm)
Width: 0.4 inches (11.6 mm)
Height: 0.4 inches (9.1 mm)
Number of wires (wires): 2
Rated Current: 20A
Rated Voltage: 300 V
Maximum Operating Temperature: 176°F (80°C).
Compatible wire (copper/single wire): ⌀ 0.06 inch (1.6 mm), φ 0.1 inch (2.0 mm) [Material/Finish]
Spring: Stainless Steel (SUS302)
Conductive Plate: Oxygen Free Copper (C1021) / Tin Plated
Housing: Polycarbonate (PC) [Set Contents] [Caution]
Strip the wire sheath to the strip gauge.
Please keep curved wires straight before using.
Plug the wire straight and deep to see your eyes.
Insufficient insertion may cause heat to generate.
Do not fold near the connector outlet when placing it in a box.

Manufacturer ‎ニチフ端子工業
Part Number ‎QLX
Item Weight ‎110 g
Product Dimensions ‎8.5 x 6.8 x 6.8 cm; 110 g
Is Discontinued By Manufacturer ‎No
Size ‎極数:2
Color ‎clear
Style ‎Pack of 50
Pattern ‎Single Item
Number of Pieces ‎50
Included Components ‎No
Batteries Included ‎No
Batteries Required? ‎No
Item Dimensions LxWxH ‎8.5 x 6.8 x 6.8 cm
